Name: Smart™ Galvanised T-Bar | 250 x 10mm (V) x 200 x 10mm (H)
Brand: Steel Builders
SKU: Tbar200X10-250X10-5400
Price: 1023.72 AUD
Availability: InStock

Smart T-Bar™ - Galvanised - Steel Builders

Same-day pick up available at our St Marys and Belmore Warehouses

Reliable Shipping Across NSW & ACT

In stock, ready to ship
Inventory on the way

Price Save $271.48

Size

250mm X 10mm (V) / 200mm X 10mm (H)

Length

5400mm

6000mm

7200mm

6300mm

Quantity

Tax included. Shipping calculated at checkout.

[{"id":40085699690605,"title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 5400mm","option1":"250mm X 10mm (V) \/ 200mm X 10mm (H)","option2":"5400mm","option3":null,"sku":"Tbar200X10-250X10-5400","requires_shipping":true,"taxable":true,"featured_image":{"id":29152435961965,"product_id":6812836954221,"position":2,"created_at":"2022-05-24T15:29:41+10:00","updated_at":"2022-05-24T15:29:41+10:00","alt":"Smart T-Bar™ - Galvanised - Steel Builders","width":500,"height":333,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181","variant_ids":[40085699690605,40085699723373,40085699756141,40085699788909]},"available":true,"name":"Smart™ Galvanised T-Bar | 250 x 10mm (V) x 200 x 10mm (H) - 250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 5400mm","public_title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 5400mm","options":["250mm X 10mm (V) \/ 200mm X 10mm (H)","5400mm"],"price":102372,"weight":195530,"compare_at_price":129520,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Smart T-Bar™ - Galvanised - Steel Builders","id":21439804538989,"position":2,"preview_image":{"aspect_ratio":1.502,"height":333,"width":500,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40085699723373,"title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 6000mm","option1":"250mm X 10mm (V) \/ 200mm X 10mm (H)","option2":"6000mm","option3":null,"sku":"Tbar200X10-250X10-6000","requires_shipping":true,"taxable":true,"featured_image":{"id":29152435961965,"product_id":6812836954221,"position":2,"created_at":"2022-05-24T15:29:41+10:00","updated_at":"2022-05-24T15:29:41+10:00","alt":"Smart T-Bar™ - Galvanised - Steel Builders","width":500,"height":333,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181","variant_ids":[40085699690605,40085699723373,40085699756141,40085699788909]},"available":true,"name":"Smart™ Galvanised T-Bar | 250 x 10mm (V) x 200 x 10mm (H) - 250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 6000mm","public_title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 6000mm","options":["250mm X 10mm (V) \/ 200mm X 10mm (H)","6000mm"],"price":113746,"weight":218000,"compare_at_price":143910,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Smart T-Bar™ - Galvanised - Steel Builders","id":21439804538989,"position":2,"preview_image":{"aspect_ratio":1.502,"height":333,"width":500,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40085699788909,"title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 7200mm","option1":"250mm X 10mm (V) \/ 200mm X 10mm (H)","option2":"7200mm","option3":null,"sku":"Tbar200X10-250X10-7200","requires_shipping":true,"taxable":true,"featured_image":{"id":29152435961965,"product_id":6812836954221,"position":2,"created_at":"2022-05-24T15:29:41+10:00","updated_at":"2022-05-24T15:29:41+10:00","alt":"Smart T-Bar™ - Galvanised - Steel Builders","width":500,"height":333,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181","variant_ids":[40085699690605,40085699723373,40085699756141,40085699788909]},"available":true,"name":"Smart™ Galvanised T-Bar | 250 x 10mm (V) x 200 x 10mm (H) - 250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 7200mm","public_title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 7200mm","options":["250mm X 10mm (V) \/ 200mm X 10mm (H)","7200mm"],"price":136495,"weight":261000,"compare_at_price":172696,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Smart T-Bar™ - Galvanised - Steel Builders","id":21439804538989,"position":2,"preview_image":{"aspect_ratio":1.502,"height":333,"width":500,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181"}},"requires_selling_plan":false,"selling_plan_allocations":[]},{"id":40085699756141,"title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 6300mm","option1":"250mm X 10mm (V) \/ 200mm X 10mm (H)","option2":"6300mm","option3":null,"sku":"Tbar200X10-250X10-6300","requires_shipping":true,"taxable":true,"featured_image":{"id":29152435961965,"product_id":6812836954221,"position":2,"created_at":"2022-05-24T15:29:41+10:00","updated_at":"2022-05-24T15:29:41+10:00","alt":"Smart T-Bar™ - Galvanised - Steel Builders","width":500,"height":333,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181","variant_ids":[40085699690605,40085699723373,40085699756141,40085699788909]},"available":true,"name":"Smart™ Galvanised T-Bar | 250 x 10mm (V) x 200 x 10mm (H) - 250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 6300mm","public_title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 6300mm","options":["250mm X 10mm (V) \/ 200mm X 10mm (H)","6300mm"],"price":119433,"weight":229000,"compare_at_price":151110,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Smart T-Bar™ - Galvanised - Steel Builders","id":21439804538989,"position":2,"preview_image":{"aspect_ratio":1.502,"height":333,"width":500,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181"}},"requires_selling_plan":false,"selling_plan_allocations":[]}]

{"id":40085699690605,"title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 5400mm","option1":"250mm X 10mm (V) \/ 200mm X 10mm (H)","option2":"5400mm","option3":null,"sku":"Tbar200X10-250X10-5400","requires_shipping":true,"taxable":true,"featured_image":{"id":29152435961965,"product_id":6812836954221,"position":2,"created_at":"2022-05-24T15:29:41+10:00","updated_at":"2022-05-24T15:29:41+10:00","alt":"Smart T-Bar™ - Galvanised - Steel Builders","width":500,"height":333,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181","variant_ids":[40085699690605,40085699723373,40085699756141,40085699788909]},"available":true,"name":"Smart™ Galvanised T-Bar | 250 x 10mm (V) x 200 x 10mm (H) - 250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 5400mm","public_title":"250mm X 10mm (V) \/ 200mm X 10mm (H) \/ 5400mm","options":["250mm X 10mm (V) \/ 200mm X 10mm (H)","5400mm"],"price":102372,"weight":195530,"compare_at_price":129520,"inventory_management":"shopify","barcode":"","featured_media":{"alt":"Smart T-Bar™ - Galvanised - Steel Builders","id":21439804538989,"position":2,"preview_image":{"aspect_ratio":1.502,"height":333,"width":500,"src":"\/\/www.steelbuilders.com.au\/cdn\/shop\/products\/smart-t-bartm-galvanised-steel-builders-2_8ca15254-48db-4132-a1d2-c3f15036bb45.jpg?v=1653370181"}},"requires_selling_plan":false,"selling_plan_allocations":[]}

Proudly Australian Designed and made to Australian Standards

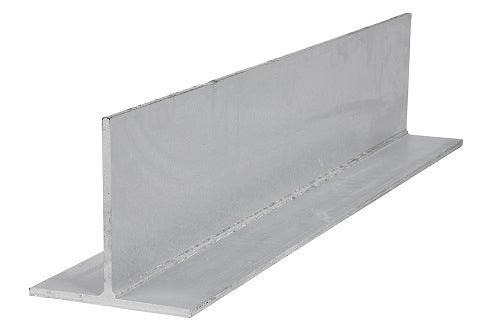

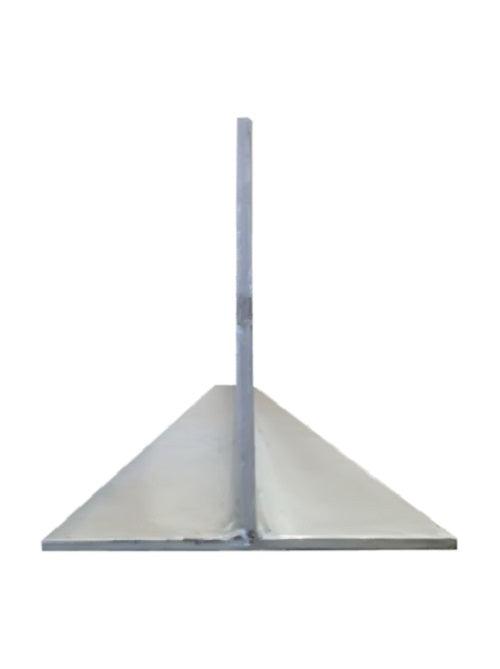

The Galvanised Smart T-Bar™ is an Australian designed lightweight lintel used for supporting brickwork over openings. Typically used for double brick with no cavity, some common uses include garage door openings. It is a fully welded bar and is not reliant upon composite action.

We also have other smart T-Bar™ sizes available. Please contact our sales department for more information.

Section Properties

DIMENSIONS		SECTION PROPERTIES
Designation	Mass per Metre	Gross Section Area	About x-axis		About y-axis
Flangeâ€”Horizontal (H) mm		Ag	Ix	Zx	Iy
Webâ€”Vertical (V) mm	kg/m	mm^2	10^6 mm^4	10^3 mm^3	10^6 mm^4
200x6(H) +200x6(V)	18.84	2400	10.4	32	4.003
200x6(H) +200x8(V)	21.98	2800	12.6	72	4.009
200x6(H) +200x10(V)	25.12	3200	14.6	115	4.017
200x10(H) +200x10(V)	31.4	4000	17.7	127	6.69

Budabar T bars - Safe load tables

200x6 flange	Span (mm)	1800	2100	2400	2700	3000	3300
200x6 web	Bar Length(mm)	2100	2400	2700	300	3300	3600
18.84kg/m	UDL (kg/m)	1015	750	585	468	375	310
	Point Load(kg)	995	843	745	668	600	535

200x6 flange	Span (mm)	2400	2700	3000	3300	3600	3900
200x8 web	Bar Length(mm)	2700	3000	3300	3600	3900	4200
21.98kg/m	UDL (kg/m)	1350	1065	870	725	605	515
	Point Load(kg)	1715	1525	1375	1255	1135	1050

200x6 flange	Span (mm)	3600	3900	4200	4500	4800	5100	5400	5700
200x10 web	Bar Length(mm)	3900	4200	4500	4800	5100	5400	5700	6000
25.12kg/m	UDL (kg/m)	825	650	515	410	345	280	230	195
	Point Load(kg)	1825	1635	1415	1210	1065	915	805	715

200x10 flange	Span (mm)	3600	3900	4200	4500	4800	5100	5400
200x10 web	Bar Length(mm)	3900	4200	4500	4800	510	5400	5700
31.4kg/m	UDL (kg/m)	980	828	703	580	480	385	320
	Point Load(kg)	2015	1865	1685	1475	1280	1125	1075

200x10 flange	Span (mm)	5700	6000	6300	6600	6900	7200
200x10 web	Bar Length(mm)	6000	6300	6600	6900	7200	7500
31.4kg/m	UDL (kg/m)	265	228	190	165	140	116
	Point Load(kg)	990	865	775	685	620	550

Notes on Safe Load Tables for Smart™ Galvanised T-Bar

The Smart™ Galvanised T-Bar is imported from China, material used is Q235B, Q235 material is in accordance with PRC standard GB 700(previous version GB700-79 part A3 & C3), and here Q stands for yielding. According to PRC
National Standard GB700-88, the minimum yielding point is 235Mpa for thicknesses less than 17mm, tensile strength is between 375-400MPa, E=200~210 GPa

The Smart™ Galvanised T-Bar is simply supported at both ends.
The Smart™ Galvanised T-Bar is loaded such that the load acts vertically and equally on both sides of the web.
The Smart™ Galvanised T-Bar is considered as being laterally unrestrained for the full span length.
UDL loads are constant along the length of the bar.
Point loads act at mid-span.
150mm minimum bearing support on to brickwork.
Hot-dip galvanising to AS / NZS 4680:2006.
Loads are in accordance with AS / NZS 1170.1:2002.

Note:

a minimum of three courses of bricks must be laid above the lintel beam.
Load limited by deflection of 1/500 span.
Yielding stress fy=235 Mpa, tensile strength fu=375Mpa for both web and flange.
Mass per metre calculation is based on 7850kg/m^3.
Calculate bar length is span+150mm each end.

https://cdn.shopify.com/s/files/1/0553/1762/6989/files/Steel_Builders_-_Smart_Lintels_Smart_T-Bars_Brochure.pdf?v=1644460896

To find our more information on this product visit either the Brochures or Drawings page.

Lintel Load Tables: Download PDF

Due to the nature of this item, we currently only ship this item to NSW and the ACT*. For delivery costs, please use the delivery calculator on the checkout page.

*Delivery to remote areas of NSW or ACT may not be suitable for our delivery trucks. Please contact us prior to ordering should you have any concerns.

This item is stocked at our St Marys and Belmore Warehouses.
